45mm electronic limit switch motor+build-in receiver
YX45EDC
45mm diameter, electronic limit switch+build-in receiver DC motor
Quantity
1.φ45mm, Electronic limit switch radio DC motor
2.Low voltage protection function
3.Over current protection function
4.Low standby consumption function
5.Brake coil temperature control function
6.remote control
7.DC power, no need wiring
8.Multiple charging options to meet different charging needs(solar panel or charger)
9.Tilting to adjust light function
10. 3rd limit position function
11.Radio Lock
12.cusomized 4or 5 limit positions for choice
13. One button presses to wake up the motor function, as long time without operation the motor will go to sleeping mode

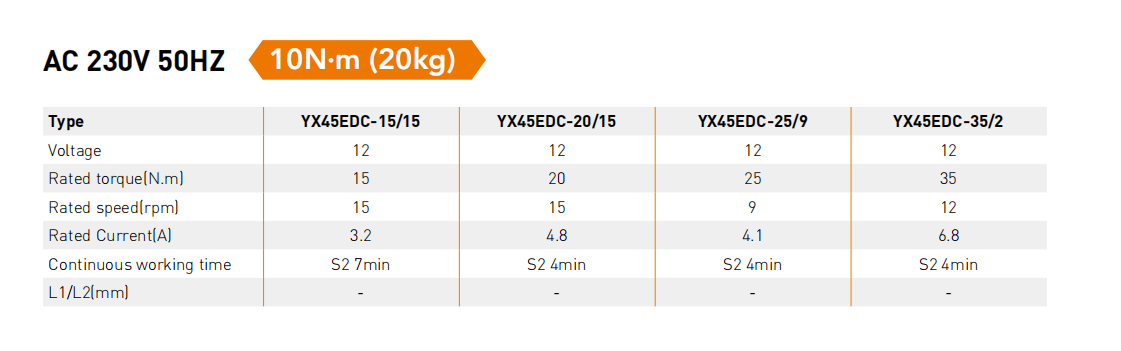

14. 15Nm/15rpm,20Nm/15rpm，25Nm/9rpm,35Nm/12rpm
15. Various motor heads for choice to meet different install requests
